您當前位置:首頁EMC測試系統2/3/4/5G RF測試系統

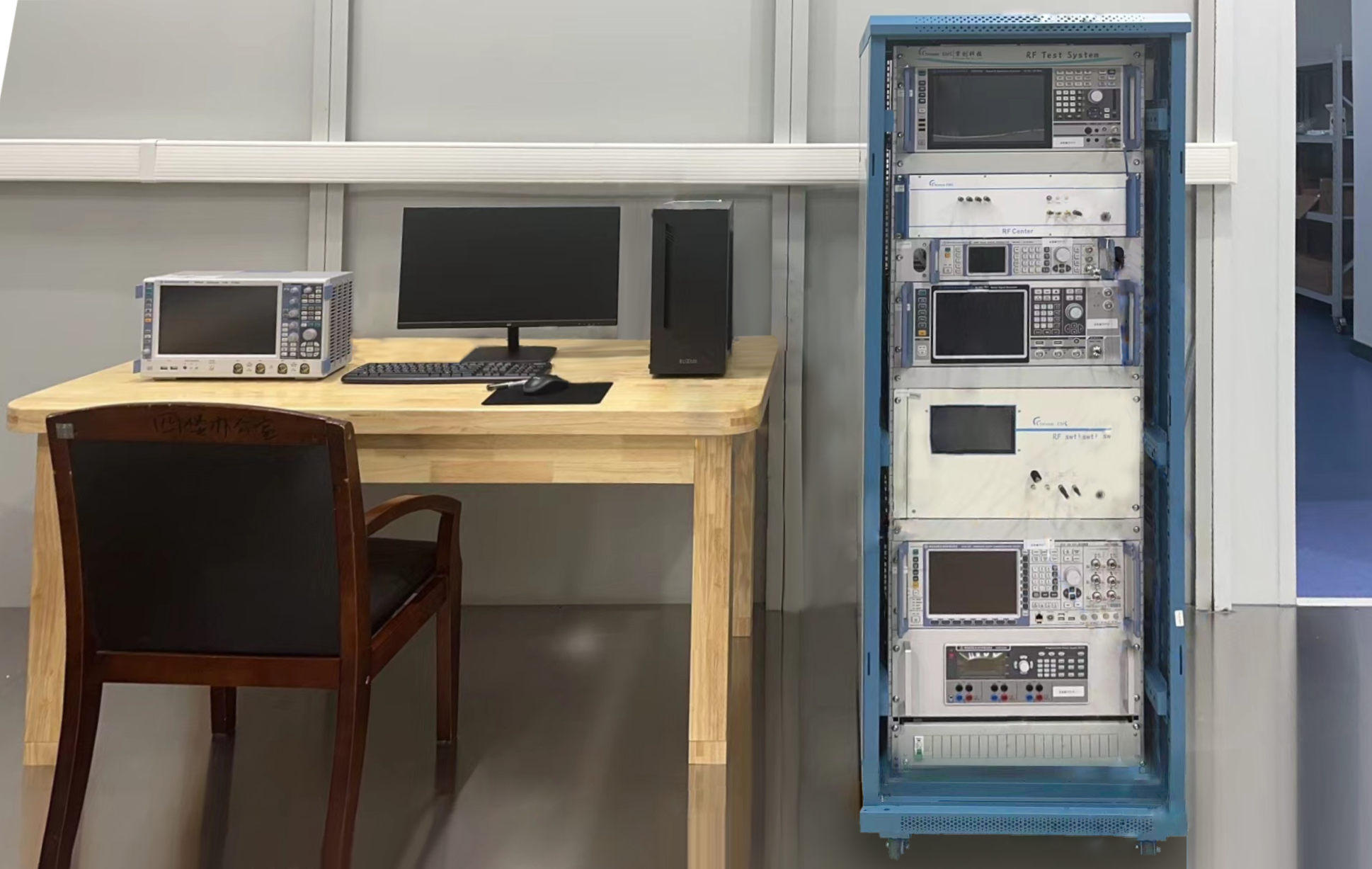

2/3/4/5GRF系統

一.系統能能力

軟件平臺	區域認證	標準	測試內容
2345G?RF?Tester?V1.01	歐盟CE	EN301511	GSM
		EN301908-1/301908-2	WCDMA
		ETSI?EN?301908-13(3GPP?TS?36.521-1)	LTE<E?CA
		EN301908-25(3GPP?TS?38.521-1)	NR?SA&NR?CA
		EN301908-25(3GPP?TS?38.521-3)	NR?NSA
	美國FCC	FCC?Part22/24	GSM
		FCC?Part22/24/27	WCDMA
		FCC?Part22/24/27	LTE<E?CA
		FCC?Part?24?Subpart?E	NR?SA&NR?NSA&NR?CA
	中國SRRC	YD/T?1215-2006	GSM
		YD/T?1548.1-2009/3GPP?TS?34.121-1	WCDMA
		YD/T?2576.2-2013/YD/T?2578.2-2013	LTE<E?CA
		GB/T?12572-2008(3GPP?TS?38.521-1)	NR?SA&NR?CA
		GB/T?12572-2008(3GPP?TS?38.521-3)	NR?NSA

二.優勢特點及適用范圍：

1.軟件支持多廠商多種儀器型號；并自帶校準功能。

2.自動化切換測試鏈路，減少手動操作；并且支持GSM、WCDMA、LTE、NR認證測試。

3.一鍵自動化測試和報告生成、客戶可自行設計報告，并支持Excel、PDF、Word等多種報告格式。

4.軟件測試項開放可編輯：可自行根據規則配置自己所腳本；支持數據庫及數據分析。
5.系統擴展性強，支持客戶定制化需求。

三.系統連接示意圖：

四.機柜前部布局圖

2/3/4/5GRF系統

五.機柜后部布局圖

2/3/4/5GRF系統

六.標準

1.CE標準——GSM

?EN30151
測試項	GSM	射頻開關	模擬源	矢量源	頻譜儀	綜測儀
1）Transmitter-Frequency?error?and?phase?error	√	√				√
2）Transmitter-Frequency?error?under?multipath?and?interference?conditions	√	√				√
3）Transmitter?output?power?and?burst?timing	√	√				√
4）Transmitter-Output?RF?spectrum	√	√				√
5）Conducted?spurious?emissions-MS?allocated?a?channel	√	√			√	√
6）Conducted?spurious?emissions-MS?in?idle?mode	√	√			√	√
7）Receiver?Blocking?and?spurious?response-speech?channels	√	√	√			√
8）Receiver?Adjacent?Channel?Selectivity(ACS)	√	√		√		√
9）Receiver?Intermodulation?Characteristics	√	√	√	√		√
10）Minimum?Input?Level	√	√				√
11）Receiver?sensitivity	√	√				√

2.CE標準(WCDMA)

EN301908-1/EN301908-2
測試項	WCDMA	射頻開關	模擬源	矢量源	頻譜儀	綜測儀
1）Transmitter?maximum?output?power	√	√				√
2）Transmitter?spectrum?emission?mask	√	√
3）Transmitter?spurious?emissions	√	√			√	√
4）Receiver?spurious?emissions	√	√			√	√
5）Transmitter?minimum?output?power	√	√				√
6）Adjacent?Channel?Selectivity(ACS)	√	√		√		√
7）Receiver?spurious?response	√	√	√			√
8）Receiver?intermodulation?characteristics	√	√	√	√		√
9）Receiver?blocking?characteristics(In-band)	√	√		√		√
10）Receiver?blocking?characteristics(Out-band)	√	√	√			√
11）Receiver?blocking?characteristics(Narrow-band)	√	√	√			√
12）Out-of-synchronization?handling?of?output?power	√	√				√
13）Transmitter?Adjacent?Channel?Leakage?power?Ratio(ACLR)	√	√				√
14）Receiver?Reference?Sensitivity?level	√	√				√

3.CE標準(LTE)

EN301908-13
測試項	LTE	射頻開關	模擬源	矢量源	頻譜儀	綜測儀
1）Transmitter?Maximum?Output?Power	√	√				√
2）Transmitter?Minimum?Output?Power	√	√				√
3）Transmitter?Spectrum?Emission?Mask	√	√				√
4）Transmitter?Adjacent?Channel?Leakage?Power?Ratio	√	√				√
5）Transmitter?Spurious?Emissions	√	√			√	√
6）Occupied?Channel?Bandwidth	√	√				√
7）Transmitter?unwanted?emission?in?the?OOB?domain	√	√			√	√
8）Transmitter?unwanted?emission?in?the?spurious?domain	√	√			√	√
9）Receiver?spurious?emissions	√	√			√	√
10）Receiver?Adjacent?Channel?Selectivity(ACS)	√	√		√		√
11）Blocking?Characteristics(In-Band)	√	√		√		√
12）Blocking?Characteristics(Out-Of-Band)	√	√	√			√
13）Blocking?Characteristics(Narrow-Band)	√	√	√			√
14）Receiver?Intermodulation?Characteristics	√	√	√	√		√
15）Receiver?Spurious?Response	√	√	√			√
16）Receiver?sensitivity?level	√	√				√
17）Minimum?Input?Level	√	√				√

4.CE標準(LTE CA)

ETSI?EN?301908-13(3GPP?TS?36.521-1)
測試項目	Intra-Band? Contiguous? DL?CA?and?UL?CA	Intra-Band ?Contiguous? DL?CA?without?UL?CA	Intra-Band?Non-Contiguous? DL?CA?without?UL?CA	Inter-Band?? DL?CA?without?UL?CA
1）Transmitter?Maximum?Output?Power	√
2）Transmitter?Minimum?Output?Power	√
3）Transmitter?Spectrum?Emission?Mask	√
4）Transmitter?Adjacent?Channel?Leakage?Power?Ratio	√
5）Transmitter?Spurious?Emissions	√
6）Occupied?Channel?Bandwidth	√
7）Transmitter?unwanted?emission?in?the?OOB?domain	√
8）Transmitter?unwanted?emission?in?the?spurious?domain	√
9）Receiver?spurious?emissions	√	√	√	√
10）Receiver?Adjacent?Channel?Selectivity(ACS)	√	√	√	√
11）Blocking?Characteristics(In-Band)	√	√	√	√
12）Blocking?Characteristics(Out-Of-Band)	√	√	√	√
13）Blocking?Characteristics(Narrow-Band)	√	√	√	√
14）Receiver?Intermodulation?Characteristics	√	√	√	√
15）Receiver?Spurious?Response	√	√	√	√
16）Receiver?sensitivity?level	√	√	√	√
17）Minimum?Input?Level	√	√	√	√

5.CE標準(NR SA)

EN301908-25(3GPP?TS?38.521-1)
測試項	NR?SA	射頻開關	模擬源	矢量源	頻譜儀	綜測儀
1）UE?maximum?output?power	√	√				√
2）Minimum?output?power	√	√				√
3）Spectrum?Emission?Mask	√	√				√
4）Adjacent?channel?leakage?ratio	√	√				√
5）General?spurious?emissions	√	√			√	√
6）Tramsmit?intermodulation	√	√			√	√
7）Spurious?emission?for?UE?co-existence	√	√			√	√
8）Spurious?emissions	√	√			√	√
9）Adjacent?channel?selectivity	√	√		√		√
10）InBand?Blocking	√	√		√		√
11）Out-of-band?blocking	√	√	√			√
12）Narrow?band?blocking	√	√	√			√
13）Intermodulation?characteristics	√	√	√	√		√
14）Spurious?response	√	√	√			√
15）Reference?sensitivity	√	√				√
16）Maximum?input?level	√	√				√

6.CE標準(NR NSA)

EN301908-25(3GPP?TS?38.521-3)
測試項	NR?NSA	射頻開關	模擬源	矢量源	頻譜儀	綜測儀
1）UE?maximum?output?power	√	√				√
2）Minimum?output?power	√	√				√
3）Spectrum?Emission?Mask	√	√				√
4）Adjacent?channel?leakage?ratio	√	√				√
5）General?spurious?emissions	√	√			√	√
6）Tramsmit?intermodulation	√	√			√	√
7）Spurious?emission?for?UE?co-existence	√	√			√	√
8）Spurious?emissions	√	√			√	√
9）Adjacent?channel?selectivity	√	√		√		√
10）InBand?Blocking	√	√		√		√
11）Out-of-band?blocking	√	√	√			√
12）Narrow?band?blocking	√	√	√			√
13）Intermodulation?characteristics	√	√	√	√		√
14）Spurious?response	√	√	√			√
15）Reference?sensitivity	√	√				√
16）Maximum?input?level	√	√				√

7.CE標準(NR CA)

EN301908-25(3GPP?TS?38.521-1)
測試項	Intra-Band	Inter-Band	射頻開關	模擬源	矢量源	頻譜儀	綜測儀
1）UE?maximum?output?power		√	√				√
2）Minimum?output?power		√	√				√
3）Spectrum?Emission?Mask		√	√				√
4）Adjacent?channel?leakage?ratio		√	√				√
5）General?spurious?emissions		√	√			√	√
6）Tramsmit?intermodulation		√	√			√	√
7）Spurious?emission?for?UE?co-existence		√	√			√	√
8）Spurious?emissions	√	√	√			√	√
9）Adjacent?channel?selectivity	√	√	√		√		√
10）InBand?Blocking	√(FFS)		√		√		√
11）Out-of-band?blocking	√(FFS)		√	√			√
12）Narrow?band?blocking	√(FFS)		√	√			√
13）Spurious?response	√(FFS)		√	√			√
14）Reference?sensitivity	√		√				√
15）Maximum?input?level	√(FFS)	√(FFS)	√				√

8.FCC標準(GSM)

FCC?Part22/24
測試項	GSM	射頻開關	頻譜儀	綜測儀
1）Conducted?Output?Power?and?ERP/EIRP	√	√		√
2）Peak-Average?Ratio	√	√	√	√
3）26dB?Bandwidth	√	√	√	√
4）99%?Occupied?Bandwidth	√	√	√	√
5）Conducted?Band?Edge	√	√	√	√
6）Conducted?Spurious?Emissions	√	√	√	√
7）Frequency?Stability	√	√		√

9.FCC標準(WCDMA)

FCC?Part22/24/27
測試項	WCDMA	射頻開關	頻譜儀	綜測儀
1）Conducted?Output?Power?and?ERP/EIRP	√	√		√
2）Peak-Average?Ratio	√	√	√	√
3）26dB?Bandwidth	√	√	√	√
4）Occupied?Bandwidth	√	√	√	√
5）Band?Edge?Emissions?at?Antenna?Terminal	√	√	√	√
6）Extended?Band?Edge?Emissions?at?Antenna?Terminal	√	√	√	√
7）Spurious?and?Harmonic?Emissions?at?Antenna?Terminal	√	√	√	√
8）Frequency?Stability	√	√		√

10.FCC標準(LTE)

FCC?Part22/24/27
測試項	LTE	射頻開關	頻譜儀	綜測儀
1）Radiated?Power(ERP/EIRP)	√	√		√
2）Peak-Average?Ratio	√	√	√	√
3）26dB?Bandwidth	√	√	√	√
4）Occupied?Bandwidth	√	√	√	√
5）Band?Edge?Emissions?at?Antenna?Terminal	√	√	√	√
6）Extended?Band?Edge?Emissions?at?Antenna?Terminal	√	√	√	√
7）Spurious?and?Harmonic?Emissions?at?Antenna?Terminal	√	√	√	√
8）Frequency?Stability	√	√		√

11.FCC標準(LTE CA)

FCC?Part22/24/27
測試項	IntraBand?Contiguous?DL?CA?and?UL?CA	IntraBand?Contiguous?DL?CA?without?UL?CA	InterBand??DL?CA?without?UL?CA	Intra-Band?NonContiguous?DL?CA?without?UL?CA
1）Radiated?Power(ERP/EIRP)	√
2）Peak-Average?Ratio	√
3）26dB?Bandwidth	√
4）Occupied?Bandwidth	√
5）Band?Edge?Emissions?at?Antenna?Terminal	√
6）Extended?Band?Edge?Emissions?at?Antenna?Terminal	√
7）Spurious?and?Harmonic?Emissions?at?Antenna?Terminal	√
8）Frequency?Stability	√

12.FCC標準(NR SA)

FCC?Part?24?Subpart?E
測試項	NR?SA	射頻開關	頻譜儀	綜測儀
1）Power	√	√		√
2）PeakToAverage?Ratio	√	√	√	√
3）Occupied?Bandwidth	√	√		√
4）Band?Edge	√	√	√	√
5）OutOfBand?Emissions	√	√	√	√
6）Frequency?Stability	√	√		√

13.FCC標準(NR NSA)

FCC?Part?24?Subpart?E
測試項	NR?NSA	射頻開關	頻譜儀	綜測儀
1）Power	√	√		√
2）PeakToAverage?Ratio	√	√	√	√
3）Occupied?Bandwidth	√	√		√
4）Band?Edge	√	√	√	√
5）OutOfBand?Emissions	√	√	√	√
6）Frequency?Stability	√	√		√

14.FCC標準(NR CA)

FCC?Part?24?Subpart?E
測試項	NR?CA	射頻開關	頻譜儀	綜測儀
1）Power	√	√		√
2）PeakToAverage?Ratio	√	√	√	√
3）Occupied?Bandwidth	√	√		√
4）Band?Edge	√	√	√	√
5）OutOfBand?Emissions	√	√	√	√
6）Frequency?Stability	√	√		√

15.SRRC標準——GSM

YD/T?1215-2006
測試項	GSM	射頻開關	模擬源	矢量源	頻譜儀	綜測儀
1）頻率相位誤差	√	√				√
2）發射機輸出功率	√	√				√
3）發射機功率控制	√	√				√
4）突發時間功率關系	√	√				√
5）發射調制譜	√	√				√
6）發射開關譜	√	√				√
7）傳導發射雜散	√	√			√	√
8）參考靈敏度	√	√				√

16.SRRC標準(WCDMA)

YD/T?1548.1-2009/3GPP?TS?34.121-1
測試項	WCDMA	射頻開關	模擬源	矢量源	頻譜儀	綜測儀
1）最大發射功率	√	√				√
2）矢量幅度誤差	√	√				√
3）峰值碼域誤差	√	√				√
4）頻率相位誤差	√	√				√
5）鄰道泄漏功率比	√	√				√
6）發射模板	√	√				√
7）最小輸出功率	√	√				√
8）上行閉環功率控制	√	√				√
9）上行開環功率控制	√	√				√
10）發射開關時間模板	√	√				√
11）發射機互調	√	√	√	√		√
12）發射雜散	√	√			√	√
13）輸出功率的失步處理(連續發射)	√	√				√
14）發射關功率	√	√				√
15）占用帶寬	√	√				√
16）輸出功率的失步處理(不連續發射)	√	√				√
17）相位非連續性	√	√				√
18）參考靈敏度電平	√	√				√
19）最大輸入電平	√	√				√
20）鄰道選擇性	√	√		√		√
21）帶內阻塞	√	√		√		√
22）帶外阻塞	√	√	√			√
23）窄帶阻塞	√	√	√			√
24）雜散響應	√	√	√			√
25）接收機互調	√	√	√	√		√
26）接收雜散	√	√			√	√

17.SRRC標準(LTE)

YD/T?2576.2-2013/YD/T?2578.2-2013
測試項	WCDMA	射頻開關	模擬源	矢量源	頻譜儀	綜測儀
1）最大發射功率	√	√				√
2）最大發射功率回退	√	√				√
3）額外最大發射功率回退	√	√				√
4）配置UE發射功率	√	√				√
5）最小發射功率	√	√				√
6）矢量幅度誤差	√	√				√
7）PUSCH跳變周期矢量幅度誤差	√	√				√
8）頻率相位誤差	√	√				√
9）占用帶寬	√	√				√
10）鄰道泄漏功率比	√	√				√
11）發射模板	√	√				√
12）額外發射模板	√	√				√
13）絕對功率控制容限	√	√				√
14）相對功率控制容限	√	√				√
15）總功率控制容限	√	√				√
16）載波泄漏	√	√				√
17）帶內雜散	√	√				√
18）EVM均衡器頻譜平坦度	√	√				√
19）發射開關時間模板	√	√				√
20）PRACH時間模板	√	√				√
21）SRS時間模板	√	√				√
22）發射機互調	√	√				√
23）發射雜散	√	√			√	√
24）額外發射雜散	√	√			√	√
25）發射關功率	√	√				√
26）UE共存雜散輻射帶	√	√			√	√

18.SRRC標準(LTE CA)

YD/T?2576.2-2013/YD/T?2578.2-2013
測試項	WCDMA	射頻開關	模擬源	矢量源	頻譜儀	綜測儀
1）最大發射功率	√	√				√
2）最大發射功率回退	√	√				√
3）額外最大發射功率回退	√	√				√
4）配置UE發射功率	√	√				√
5）最小發射功率	√	√				√
6）矢量幅度誤差	√	√				√
7）PUSCH跳變周期矢量幅度誤差	√	√				√
8）頻率相位誤差	√	√				√
9）占用帶寬	√	√				√
10）鄰道泄漏功率比	√	√				√
11）發射模板	√	√				√
12）額外發射模板	√	√				√
13）絕對功率控制容限	√	√				√
14）相對功率控制容限	√	√				√
15）總功率控制容限	√	√				√
16）載波泄漏	√	√				√
17）帶內雜散	√	√				√
18）EVM均衡器頻譜平坦度	√	√				√
19）發射開關時間模板	√	√				√
20）PRACH時間模板	√	√				√
21）SRS時間模板	√	√				√
22）發射機互調	√	√				√
23）發射雜散	√	√			√	√
24）額外發射雜散	√	√			√	√
25）發射關功率	√	√				√
26）UE共存雜散輻射帶	√	√			√	√

19.SRRC標準(NR SA)

GB/T?12572-2008(3GPP?TS?38.521-1)
測試項	NR?SA	射頻開關	模擬源	矢量源	頻譜儀	綜測儀
1）最大發射功率	√	√				√
2）最大發射功率回退	√	√				√
3）額外最大發射功率回退	√	√				√
4）配置UE發射功率	√	√				√
5）最小發射功率	√	√				√
6）矢量幅度誤差	√	√				√
7）頻率相位誤差	√	√				√
8）占用帶寬	√	√				√
9）鄰道泄漏功率比	√	√				√
10）發射模板	√	√				√
11）額外發射模板	√	√				√
12）絕對功率控制容限	√	√				√
13）相對功率控制容限	√	√				√
14）總功率控制容限	√	√				√
15）載波泄漏	√	√				√
16）帶內雜散	√	√				√
17）EVM均衡器頻譜平坦度	√	√				√
18）發射開關時間模板	√	√				√
19）PRACH時間模板	√	√				√
20）SRS時間模板	√	√				√
21）發射機互調	√	√				√
22）發射雜散	√	√			√	√
23）額外發射雜散	√	√			√	√
24）發射關功率	√	√				√
25）UE共存雜散輻射帶	√	√			√	√

20.SRRC標準(NR NSA)

GB/T?12572-2008(3GPP?TS?38.521-3)
測試項	NR?NSA	射頻開關	模擬源	矢量源	頻譜儀	綜測儀
1）最大發射功率	√	√				√
2）最大發射功率回退	√	√				√
3）額外最大發射功率回退	√	√				√
4）配置UE發射功率	√	√				√
5）最小發射功率	√	√				√
6）矢量幅度誤差	√	√				√
7）頻率相位誤差	√	√				√
8）占用帶寬	√	√				√
9）鄰道泄漏功率比	√	√				√
10）發射模板	√	√				√
11）額外發射模板	√	√				√
12）絕對功率控制容限	√	√				√
13）相對功率控制容限	√	√				√
14）總功率控制容限	√	√				√
15）載波泄漏	√	√				√
16）帶內雜散	√	√				√
17）EVM均衡器頻譜平坦度	√	√				√
18）發射開關時間模板	√	√				√
19）PRACH時間模板	√	√				√
20）SRS時間模板	√	√				√
21）發射機互調	√	√				√
22）發射雜散	√	√			√	√
23）額外發射雜散	√	√			√	√
24）發射關功率	√	√				√
25）UE共存雜散輻射帶	√	√			√	√

21.SRRC標準(NR CA)

GB/T?12572-2008(3GPP?TS?38.521-1)
測試項	Intra-Band	Inter-Band	射頻開關	模擬源	矢量源	頻譜儀	綜測儀
1）最大發射功率		√	√				√
2）最大發射功率回退	√(FFS)	√(FFS)	√				√
3）額外最大發射功率回退	√(FFS)	√(FFS)	√				√
4）配置UE發射功率	√(FFS)	√	√				√
5）最小發射功率		√	√				√
6）矢量幅度誤差		√	√				√
7）頻率相位誤差		√	√				√
8）占用帶寬		√	√				√
9）鄰道泄漏功率比		√	√				√
10）發射模板		√	√				√
11）載波泄漏		√	√				√
12）帶內雜散		√	√				√
13）發射開關時間模板		√	√				√
14）發射機互調		√	√				√
15）發射雜散		√	√			√	√
16）發射關功率		√	√				√
17）UE共存雜散輻射帶		√	√			√	√
